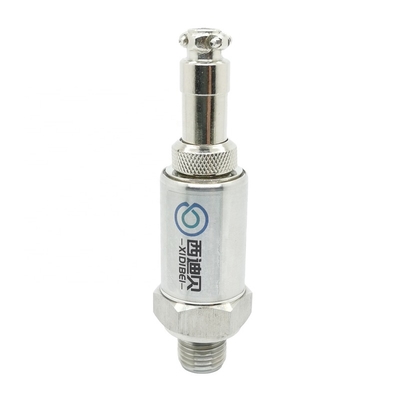

Water Oil Air Pressure Gauge XDB305 Optional Low Cost G1/4 9-32VDC 4-20mA 0-10V M12 (PIN3) Stainless Steel 2-600bar Ceramic Pressure Transmitter

10 pieces
MOQ
Water Oil Air Pressure Gauge XDB305 Optional Low Cost G1/4 9-32VDC 4-20mA 0-10V M12 (PIN3) Stainless Steel 2-600bar Ceramic Pressure Transmitter
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: XDB305
Product Name: Ceramic Pressure Transmitter
Power Supply: 9~32VDC
Output Signal: 4~20mA, 0-10V
Pressure Range: 2-600 Bar Optional
Accuracy: 0.5%FS
Operating Temperature: -20-85℃
Process Connection: G1/4
Electronic Connection: Hirchman DIN43650A
Warranty: 18 Months
Application: Water Oil Air Pressure Measurement
Basic Infomation
Model Number: XDB305
Payment & Shipping Terms
Packaging Details: Neutral packing
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Product Description
XDB305 series of pressure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainless steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various environments and climates, so it is widely used in various fields.

Features

* CE conformity
* Low cost and high quality
* All stainless steel structure
* Small size, convenient to install and operate
* 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage output
* Complete surge voltage protection function
* For applications such as air, water, oil
* Provide OEM, flexible customization

Applications

* Intelligent IoT constant pressure water supply
* Engineering machinery, industrial process control and monitoring
* Energy and water treatment systems
* Steel, light industry, environmental protection
* Medical, agricultural machinery, testing equipment
* Flow measurement equipment
* Hydraulic and pneumatic control systems
* Air-conditioning unit and refrigeration equipment
* Water pump, air compressor pressure monitoring
Manufacture Specification
Measuring range
-1～0～600Bar
Accuracy
±0.5%FS, ±0.2%FS
Output signal
4-20mA (2 wire), 0.5-4.5V; 0-5V; 1-5V; 0-10V (3 wire), I2C (digital signal)
Supply voltage
9～32(24)VDC
Operating temperature
-20～85℃
Compensation temperature
-20～80℃
Operating current
﹤=3mA
Temperature drift (zero & sensitivity)
≤±0.03%FS/℃
Long-term stability
≤±0.2%FS/year
Response time
≤3ms
Overload pressure
150%FS
Burst pressure
300%FS
Cycle life
500,000 times
Sensor core
Al2O3-96% ceramic sensor
Pressure medium
Non-corrosive liquid or gas
Pressure connection
G1/4”,  Other pressure connection is on request
Electrical connection
M12(PIN3)
Housing material
304 Stainless Steel
Protection class
IP65
Explosion-proof class
ExiaⅡCT6
Size Information

Dimension (unit:mm)

Electrical connection
Company Information
We have been engaged in the field of pressure sensors for more than 10 years. We have piezoresistive ceramic pressure sensor production lines and MEMS technology to provide customers with high-quality, low-price pressure sensors and transmitter products.
Packaging & Shipping
FAQ

Q1: What's your business range?

We have piezoresistive ceramic pressure sensor production lines and MEMS technology to provide customers with high-quality, low-price pressure sensors and transmitter products.

Q2: May I visit your factory?

Of course, welcome to Shanghai, China. Our factory and sales are two separate professional companies.

Q3: Why should I use Alibaba Trade Assurance orders?

Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.

Q4: Why choose us?

1. We have been engaged in the field of pressure sensors for more than 10 years.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.

Q5: Can you accept ODM & OEM service ?

We professional provide OEM &ODM service for all of items.
If you have other questions, please feel free to contact us, thank you!
