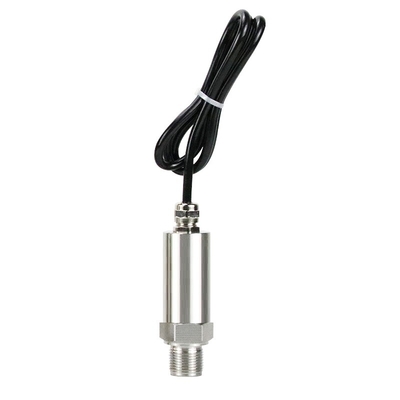

Waterproof Type Anti-Corrosion Diffusion Silicon Pressure Transmitter PTFE Pressure Sensor JEP-504

1.0 Pieces
MOQ
Waterproof Type Anti-Corrosion Diffusion Silicon Pressure Transmitter PTFE Pressure Sensor JEP-504
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Model Number: JEP-504
Basic Infomation
Model Number: JEP-504
Payment & Shipping Terms
Packaging Details: Package: Neutral Export Packing. Shipment: 1.By Express: FedEx/DHL/TNT/UPS for sample 2 By air or by sea for bulk items 3.Customer arrange shipping agent picks up goods from us.
Supply Ability: 1000 Perch/Perches per Month
Product Description
Products Description
Waterproof type Diffusion silicon pressure transmitter
PTFE anti-corrosion pressure sensor

Technical Parameters
Medium
Liquid, Gas, Oil
Medium Temperature
-40~85°C
Measuring Range
-0.1~60MPa
Measuring Accuracy
0.2%
Power Supply
12-36VDC
Pressure Type
Gauge pressure, absolute pressre, sealing pressure
Output
4-20Ma, 1-5V, 0-10V, RS485
Connection
Thread M20*1.5
Overview The JEP-500 is a compact pressure transmitter for absolute and gauge pressure measurement of gases and liquids. The pressure transmitter is a very cost-effective device for simple process pressure applications (e.g. monitoring of pumps, compressors or other machinery) as well as hydrostatic level measurement in open vessels where space-saving installation is required. JEP-500 series compact pressure transmitter uses diffused silicon, ceramic piezoresistance, strain gauge pressure sensor, after high reliability amplifying circuit and precise temperature compensation, the pressure of the measured medium is converted into a standard electrical signal. The high-quality sensor and perfect assembly process ensure the excellent quality and best of the product performance. The various parameters of this product can be customized, which can meet the needs of customers to the greatest extent, and is suitable for the supporting use of various measurement and control equipment.
Features • Small size, high cost performance, stability, high sensitivity • Stainless steel structure • Strong anti-interference, good long-term stability • Diversified forms and structures, easy to install • Wide measuring range, a variety of sensors are available • Zero point, full range adjustable • Laser marking, product traceability
Application • Hydraulic and pneumatic control system Liquid level measurement and control • Petrochemical, environmental protection, air compression, locomotive braking system • Light industry, machinery, metallurgy, building automation, constant pressure water supply industrial process detection and control, laboratory pressure verification
Work Flow
Recommend Products
Company Profile
In an industrial world where measurement becomes more and more important, Jeoro is proud to be able to offer a large range of solutions responding to measuring needs. Each instrument has its specific application and definitely solves all required tasks. Our products combine high precision, innovation, advanced design and ease of use. Since 2010, Jeoro has managed to position itself as the leader in its fields of activity and guarantees a “better quality,better measurement”. Jeoro is focused on 5 segments in the measuring field: Demensional metrology, Temperature sensor, Pressure transmitter, Flow sensor, Level sensor.
We offer turnkey solutions based on the following modular items: Instruments, Large range of accessories, Hardware, Software and driver programs. If quality is your objective, Jeoro is your partner.
