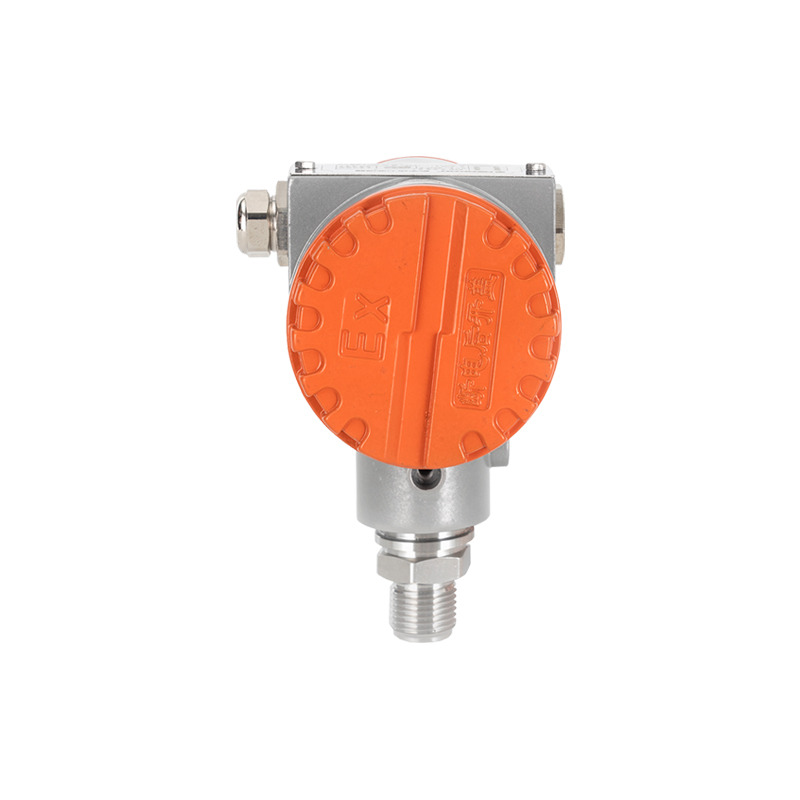

Meokon Industrial Pressure Transmitter for Farm equipment Steel industry
MD-G202 series industrial pressure transmitter adopts diffused silicon core sensor as pressure sensing element, with industrial standard explosion-proof housing with waterproof grade IP67, which makes it highly accurate, long-term stability, excellent waterproof and moisture-proof ability compatibility.
It is widely used in industrial equipment, water conservancy, chemical, medical, power etc.
Technical Characteristics:
♥ Adopt 2088 Industrial explosion-proof shell
♥ Anti-interference design, multiple setting functions
♥ Intrinsically safe explosion-proof certificate and CE certificate
♥ Support baud rate, address, filter constant setting (RS485 type)
Applications:
♣Petrochemical
♣Construction machinery
♣Steel industry
♣Pneumatic and hydraulic systems
♣Farm equipment
♣Hydraulic test stand
♣Power metallurgy
♣Energy and output system
Technical Parameters:
| Range | -100kPa…-5…0~5kPa…1MPa…60MPa |
| Overload pressure | ≤10MPa 200% |
| >10MPa 150% | |
| Response time | ≤5ms |
| Accuracy class | 0.5%FS 0.25%FS |
| Long-term stability | Typical:±0.2%FS/year |
| Zero temperature drift | Typical:±0.02%FS/℃,Maximum ±0.05%FS/℃ |
| Sensitivity temperature drift | Typical:±0.02%FS/℃,Maximum ±0.05%FS/℃ |
| Supply | 12~28VDC(Typical:24VDC) |
| Output | 4~20mA / RS485 |
| Operating temperature | -40~80℃ |
| Compensation temperature | -10~70℃ |
| Stored temperature | -40~100℃ |
| Electrical protection | Anti-reverse protection, anti-frequency interference design |
| Protection class | IP67 |
| Measurement medium | Gas or liquid incompatible with 316L stainless steel |
| Pressure connection | M20*1.5,G1/2,G1/4(Other can be customized) |
| Shell material | Cast aluminum(2088 housing) |
| Certified product | CE |
| Safety explosion-proof | Exib ⅡBT6 Gb |
