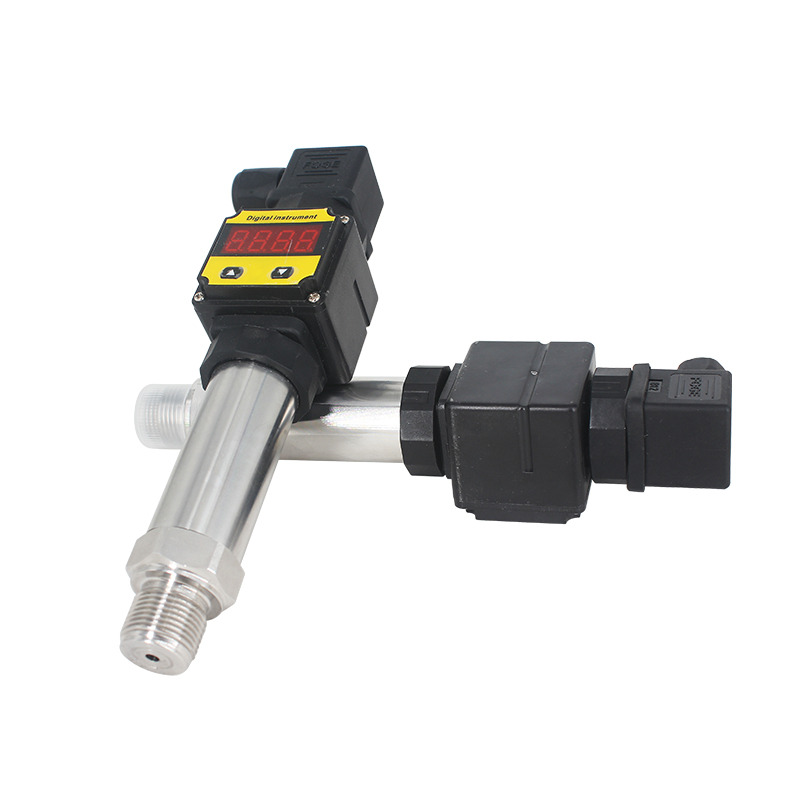

4-20mA output gauge pneumatic differential pressure transmitter 10bar digital pressure transmitter
<1>. Pessure transmitter has been specially designed to cover the majority of industrial applications where need high accuracy measurement.
<2>. QDX50 pressure transmitter is made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to asjust zero and full range conveniently.
<3>. This pressure transducer has been approved with CE,FCC,ROHS,ISO certificates, and explosion-proof certificate.
<4>. Customized structure and outputs formats can be designed according to special application requirement, in addition to standard products.
| Measure media |
Gas, water, oil or other media can be compated with stainless |
| Pressuretype |
Gauge; Absolute; Negative, Sealed gauge pressure |
| Pressure range |
-0.1~0~100Mpa |
|
Power supply |
DC12~36V (DC24V) |
|
Output signal |
4~20mA,1~5V,0~5V,0~10V,RS485,etc |
|
Accuracy |
0.5% F.S(Default); 0.2% F.S |
|
Response time |
≤8mS |
|
Overload pressure |
200% F.S. |
|
Ambient temperature |
-40~85℃ |
|
Compensation temperature |
-10~70℃ |
|
Protection grade |
IP65 |
|
Long-term stability |
Standard: 0.2%F.S±0.05% |
|
Zero temperature drift |
0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa) |
|
FS temperature drift |
0.003%FS/°C(≤100kPa), 0.002%FS/°C(>100kPa) |
|
Natural frequency |
5KHz~650KHz |
| Thread size | M20*1.5(Default), Customization |
