Home /Products/Pneumatic Temperature Transmitter/2088 Hydraulic Digital Pressure Gauge Transmitter 4-20ma

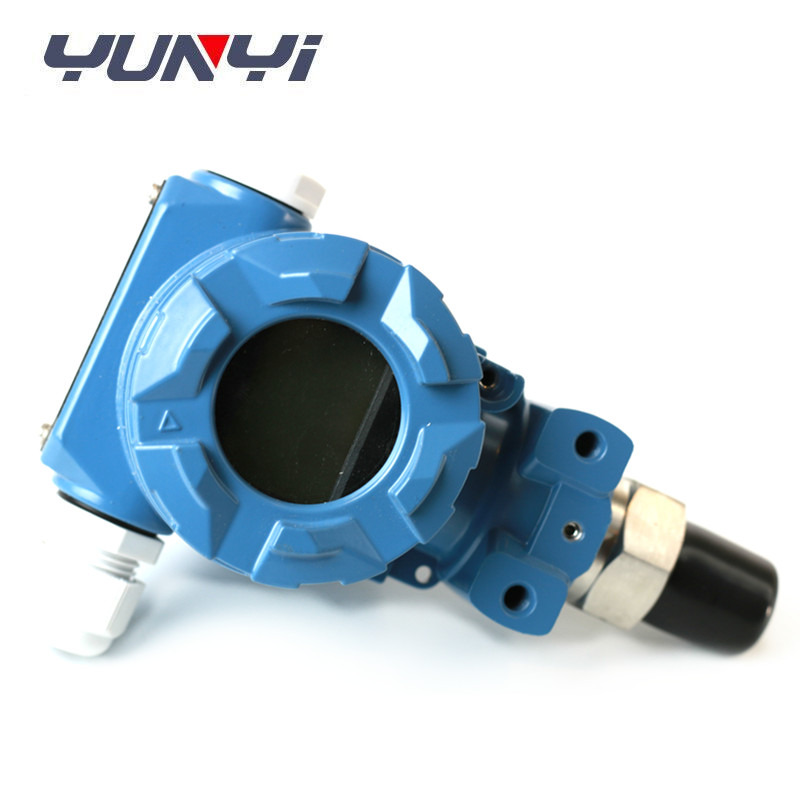

2088 Hydraulic Digital Pressure Gauge Transmitter 4-20ma

1 Unit
MOQ
2088 Hydraulic Digital Pressure Gauge Transmitter 4-20ma
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 2088
Product Name: Hydraulic 4-20ma Digital Pressure Indicator Transmitter
Range: 0 To 1.5 Psi ~ 0 To 6000 Psi (275.8 Bar)(option)
Item Name: 2088 Pressure Transmitter/digital Pressure Transmitter
Accuracy: ± 0.10% Of Span
Output Diaplay: Four Digit Display , Four Digit LED Display ,Pionter Pin Display
Protocols: 4-20mA HART
Medium:: Compatible With 316LSS,noncorrosive Liquids
Power: : DC 24V, 12 ~ 36VDC, 18.5 ~ 220VDC, AC 50HZ, 45V
Output:: 4 - 20mA HART Protocol Communication
Stability: ±0.5%F.S/year
Basic Infomation
Model Number: 2088
Payment & Shipping Terms
Packaging Details: hydraulic 4-20ma digital pressure indicator transmitter: original packing or according to customers" requirement.
Supply Ability: 100 Piece/Pieces per Week hydraulic 4-20ma digital pressure indicator transmitter
Product Description

4-20ma digital China pressure transmitter price

Description 4-20ma digital China pressure transmitter price

UC800A 4-20ma pressure sensor transmitter is intelligent pressure transmitter combine measuring ,display and transmitter together. The pressure sensor can correct the linearity and compensate temperature drift. Pressure transmitter also can adjust the parameter of transmitter by hand-helder, achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication . Pressure sensor transmitter with characteristics of high precision, good stability& reliability and easy handle. This pressure transmitter with low price and high quality, widely used in all kinds industry area.

Detailed Images 4-20ma digital China pressure transmitter price

Specification 4-20ma digital China pressure transmitter price

1.Pressure range: 0 ~ 40MPa
2.Output: 4 - 20mA HART protocol communication
3.Power: DC 24V, 12 ~ 36VDC, 18.5 ~ 220VDC, AC 50HZ, 45V
4.Accuracy: 0.1%F.S; 0.2%F.S; 0.5%F.S
5.Medium:compatible with 316LSS,noncorrosive liquids

Item
4-20ma pressure sensor transmitter
Measurement Range
-0.1...0~0.01...~100MPa
Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure type
Gauge, absolute ,sealed gauge
Accuracy
±0.1% ±0.25%(Typical)
Stability
±0.5%F.S/year
Temperature Error- Zero
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
Temperature Error -Span
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
OperatingTemperatureRange
-20℃~80℃
Power supply
12~30VDC
Output signal
4~20mA 0~10/20mA 0/1~5VDC
Pressure port
M20×1.5 G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Protection
IP65
Insulation resistance
100MΩ 100VDC

Features 4-20ma digital China pressure transmitter price

shipping and aviation industry, hydraulic pressure and pneumatic control system,Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc.
