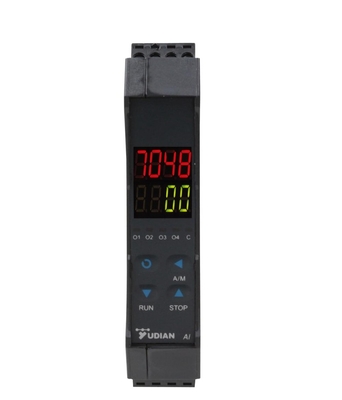

Control DIN Rail Mount Multi-Loop Temperature Controller

1 Unit
MOQ
Control DIN Rail Mount Multi-Loop Temperature Controller
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: AI-7028
Product Name: Multi-Loop DIN Rail Mount Temperature Controller
Control Model: On-off , PID Control
Color: Green Or Black
Power Supply: 100~240VAC, 24 VDC
Size: DIN Rail, 96*96, 160*80, 80*160,48*96,96*48
Input: Thermocouple, RTD, 4-20mA Or 5V/10V
Output: Two-channel SSR
Functions: Control, Alarm, Retransmission, Communication
Ambient Temperature: -10℃~+60℃, 0~90 RH%
Sampling Rate: 250ms
Basic Infomation
Model Number: AI-7028, On-off , PID Control
Payment & Shipping Terms
Packaging Details: Standard Export Carton with Yudian logo
Supply Ability: 60000 Unit/Units per Year
Product Description
company profile

Multi-Loop DIN Rail Mount Temperature Controller

Main Features:

  • Providing up to 4 channels of configurable inputs, and supporting multiple thermocouple inputs with auto reference junction compensation and linear votage (MV) input with user define scale. Every channel has its own digital filtering and can adjust its filtering degree.
  • High performance hardware design, which greatly decreased temperature drift and the interference among four channels. Therefore, this multi-channel instrument obtains the same measurement accuracy and anti-interference ability as that of single channel instrument.
  • Every channel has independent high/low alarm, and the alarms can be allocated to different alarm outputs or the same alarm output (Just available for dimension E5)
  • Friendly and customized operating interface leads to easy leaming and simple manipulation. Up to 12 parameters can be promoted to immediate operator access in Field Parameter Table
  • Advanced communication unctions, compatible with the communication protocol of the other AI series instrument.
  • Universal power supply of 100-240VAC, or 24 VDC
  • New generation D5/E5 rail mounted dimension. The width of D5 is only 22.5mm,. The instrument can be easily configured by connecting to handset display.

Description:

The multi-channel PID tmperature controller, incorporate two bright, easy to read 4-digit LED display.

AI-7048/7028 is capable of measuring 4 channels of temperature, and every channel can define its own input specification. It can either work independently or cooperate with PLC(programmable Logic Controller ).



Power Input 100-240VDC, -15%, +10%/50-60Hz;  or 24 VDC/AC, -15%, +10%.
Input type

Thermocouple: K (-100~1300℃), S (0~1700℃), R (0~1700℃), T (-200~+390℃), E (0~1000℃), J (0~1200℃), N (0~1300℃), WRe3-WRe25 (0~2300℃), WRe5-WRe26 (0~2300℃)



Resistance temperature detector: Cu50, Pt100



Linear Voltage: 0-5V, 1-5V, 0-1V, 0-100mV, 0-60mV, 0-20mV, 0-10V, ect.



Control Outputs





ssr driver - 12VDC/20mA



Alarm Outputs

1 channel relay(big volume & small volume ) : 30VDC/2A, 250VAC/2A



1 channel relay(small volume) 30VDC/1A, 250VAC/1A



2 channels relay: 30VDC/2A, 250VAC/2A



CommunicationsModbus and AIbus RS485
Power consumption≤ 5W
Operating AmbientTemperature -10~60℃; Humidity ≤90%RH
Front Panel size96*96mm, 160*80mm, 80*160mm, 48*96mm, 96*48mm, 48*48mm, 72*72mm, Din Rail mounted
Panel Cutout Dimension92*92mm, 152*76mm, 76*152mm, 45*92mm, 92*45mm, 45*45mm, 68*68mm.
Depth behind Mounting Surface100mm





Model Solutions



For example



AI-7028AJ1G5L0



2 channel pid temperature controller AI-7028, with panel size 96*96mm, dual thermocouple input and 2 SSR output, has 2 alarm.
