24 Hours Temperature Controller Microcomputer PID Inkbird ITC-100VL Measure Temperature 12-24V

20 Pieces
MOQ
$23.00(20 - 49 Pieces) $21.00(50 - 99 Pieces) $19.00(>=100 Pieces)
Price
24 Hours Temperature Controller Microcomputer PID Inkbird ITC-100VL Measure Temperature 12-24V
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ITC-100VL
Type: PID Temperater Controller
Certificate: CE ROHS
Application: Widely
Feature: 24 Hours Temperature Measurement
Power Supply: 12~24VAC/DC
Size: 48x89x48mm (1.9 X 3.5 X 1.9 Inches)
Period Of Sampling: 0.5S
Warranty: 12 Month
Data Storage: 10 Year
Products: Pid Temperature Controller
Basic Infomation
Certification: CE ROHS
Model Number: ITC-100VL
Payment & Shipping Terms
Packaging Details: Carton Size: 45cm*34cm*35cm Quantity: 60 pieces/per carton Weight: 15kg/per carton
Product Description

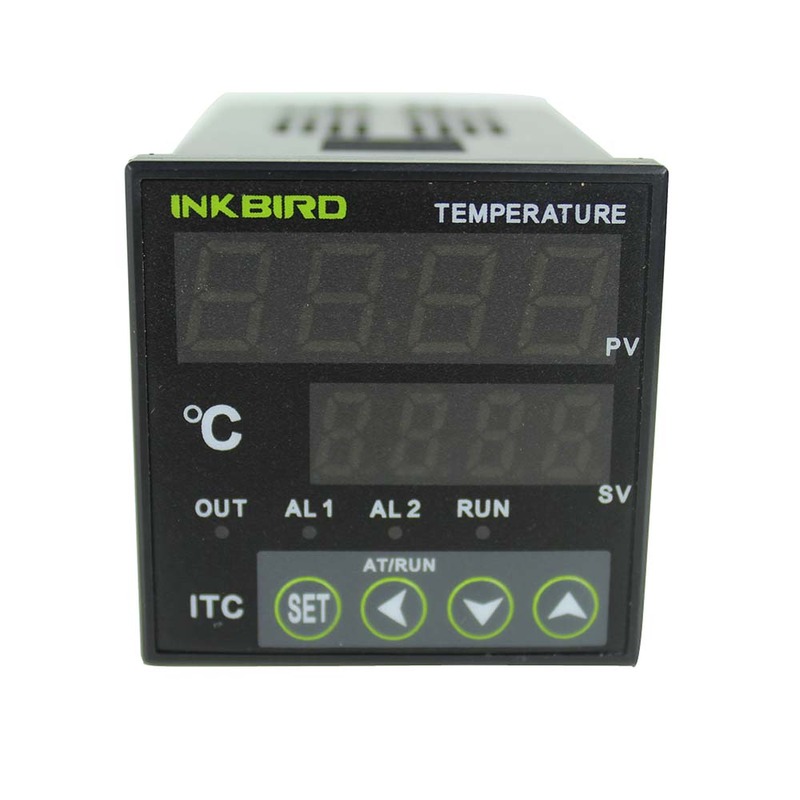

Inkbird ITC-100VL microcomputer PID temperature controller 12-24V

Poducts Description

ITC-100VL is a type of the ITC-100 sereies PID temperatrure controllerof Inkbird, which is with the power supply volatge 12-24V AC/DC to more convenient to control a temperature with high accuracy. This unit can be support multiple sensors( K, S, Wre, T, E, J, B, N, CU50, PT100) to meet various temperature controlling requirements like sous vide, smoker, water vat, oven and others.

Main Featrures

  • Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100)
  • Wide Controlling Range: -50~1300℃ (K sensor)
  • High Accuracy of Displaying and Controlling 0.1℃, Accuracy of Measurement ±0.2%FS
  • PID and ON/OFF Control Mode, High Standard Self-adjusting Function
  • Multiple Outputs and Alarm Modes
  • Build-in Adjustable Digital Filter Reduce Interference
  • The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability
  • High Luminance, 0.39” height LED display, Anti-glare panel
  • Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption

Specification

Power Supply Voltage:
AC/DC 12-24V ±10% 50/60Hz
DC 12-24V ±10%
Display Character:
PV: 4 digital 9.9mm height Red LED Letters
SV: 4 digital 8mm height Green LED Letters
Power Consumption: Approx. 4VA/3W(12~24VAC/DC)
Temperature Units: Degree Celsius (<1000℃)
Operating voltage range: 85~110% Rated voltage
Temperature Compensation: 0-50℃
Voltage Pulses Output: DC 12V, 30mA
Alarm 1 AC250V 3A (Resistive load) ON/NC
Display Accuracy: ±0.2%FS 0.1℃(<1000℃); 1℃(≥1000℃)
Storage Temperature: -20~ 60 ° C / -4~ 140 ° F
Humidity 20~85% (No Condensate)
Period of Sampling: 0.5S
Net Weight: Approx. 140g
Life Expectancy of Relay:
Mechanical≥10,000,000 operations
Electrical≥10,000,000 operations
Gross Weight: 250g
Data Storage: 10 year
Dimension Body: 48x89x48mm (1.9 x 3.5 x 1.9 inches)
Mounting Method: Flush mounting and screw terminals
Front Panel Dimension: DIN 48mm(W)X48mm(L)
Environmental Conditions:
-10~55℃(no icy or condensation)
RH 35-85% Humidity
Cutout size: 45x45mm
Mounting Method: Flush mounting and screw terminals
Storage Temperature: -25~65℃(no icy or condensation)
Package
1x ITC-100VL temperature controller
1x Mounting bracket
1x Manual
Warranty: 1 Year

Package Content

* 1xITC-100VL
* 1x Manual
* 1x Mounting Bracket
