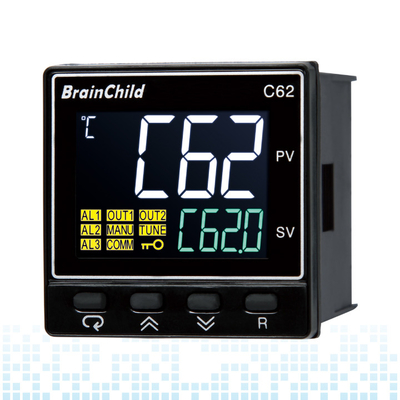

The new generation microprocessor-based PID with Fuzzy logic controller series incorporate two bright easy to read LCD Displays which indicates Process value (PV) and Set point value (SP). The Fuzzy Logic technology incorporated on this series controllers enables a process to reach the predetermined set point in the shortest time with minimum of overshoot during Start up (PowerON) or external load disturbances. The soft-start function on this series helps to suppressing the heater output during equipment start-up or lightening the load.
|
Type |
Thermocouple(J,K,T,E,B,R,S,N,L,U,P,C,D),RTD(PT100(DIN),PT100(JIS)), Current(mA),Voltage(Volts,mV) |
|
Resolution |
18 Bits |
|
Sampling Rate |
5 Times / Second (200msec) |
|
Maximum Rating |
2VDC minimum, 12VDC maximum |
|
Temperature Effect |
1.5µV /°C for all inputs except mA input, 3.0µV /°C for mA |
|
Sensor Lead Resistance Effect Thermocouple |
0.2 µV /Ω; 3-wire RTD: 2.6°C /Ω of Difference of Resistance of two leads 2-wire RTD: 2.6°C /Ω of Sum of Resistance of two leads |
|
Burn-out Current |
200nA |
|
Common Mode Rejection Ratio(CMRR) |
120 dB |
|
Normal Mode Rejection Ratio (NMRR) |
55dB |
|
Range |
3mA to 27mA, -1.3V to 11.5V |
|
Input impedance Current |
2.5Ω, Voltage:1.5MΩ |
|
Maximum rating |
280mA maximum for Current Input, 12VDC |
|
Temperature effect |
±1.5µV/°C for Voltage Input , ±3.0µV/°C |
|
Current Input |
Sensor break detection Below 1mA for 4-20mA input, below 0.25V for 1-5V input, not available for other inputs |
Feature
♣ Multi Color LCD Display
♣High Accuracy 18 Bit A-D Input
♣ 200 msec Sampling Rate
♣ Universal Inputs of Thermocouple, RTD, mA, VDC
♣ Fuzzy+ PID Control
♣ Auto-Tuning
♣ Soft-Start Function
♣Bumpless Transfer
♣ Lockout Protection
♣Bidirectional Menu Navigation
♣ UL, cUL, CE, RoHS, REACH & WEEE Approval
Application
Boilers, Heat Treatment, Chemical Industry Process Controls, Electronics Processing, Environmental Chambers, Food & Beverage, Laboratory, Medical/Clinical, Ovens and Furnaces, Packaging, Pharmaceutical, Plastics Blow Molding, Plastics Extrusion, Plastics Injection Molding, Semiconductor Processing, Textile Manufacturing, Electrical Utility, Glass & Ceramics, Military/Aerospac, Automotivee, Oil & Gas, Petrochemical, Primary Metals, Pulp & Paper, Waste Treatment
