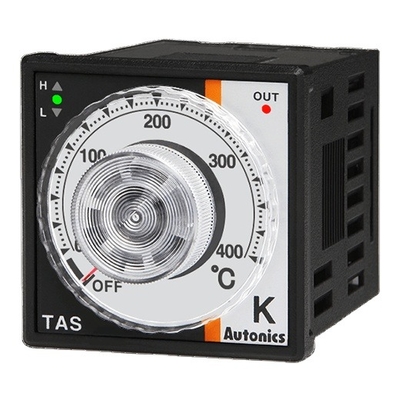

Autonics TAS-B4RJ4C DIN W48*H48mm Analog PID Non-Witness Type Temperature Controller

1 Piece
MOQ
$18.00(1 - 19 Pieces) $17.00(20 - 100 Pieces) $15.00(>=101 Pieces)
Price
Autonics TAS-B4RJ4C DIN W48*H48mm Analog PID Non-Witness Type Temperature Controller
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Model Number: TAS-B4RJ4C
Size: DIN W48*H48mm
Display Method: Non-display
Power Supply: 100-240VAC~ 50/60Hz
Control Output: Relay(250VAC~ 3A)
Approval: CE , UR
Basic Infomation
Model Number: TAS-B4RJ4C
Payment & Shipping Terms
Packaging Details: carton box
Product Description
Products Description
Size
DIN W48×H48mm
Display method
Non-display
Control method
ON/OFF control PID control
Input specification
Thermocouple: K(CA)
Temperature unit
Setting range
0 to 400
Sampling cycle
100ms
Control output
Relay(250VAC~ 3A)
Power supply
100-240VAC~ 50/60Hz
Approval
CE,UR
Setting type
Dial setting
Setting accuracy
F.S. ±2%(room temperature 23℃±5℃)
Environment_Ambient temperature
-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity
35 to 85% RH, storage: 35 to 85% RH
Insulation type
Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 2kV)
Weight
Approx. 107g(approx. 69g)
Main Features
* Auto-tuning PID temperature control
* PID and ON/OFF control : toggle via external switch
* Deviation indicators (green, red LED)
* Control output indicator (red LED)
* Stop control output function using analog dial
* Sensor disconnect display function
* Built-in microprocessor

Applications
Plastics/Rubber Industry:Plastic Bag Cutting Machines
Analog PID temperature controllers are used to control the temperature of packaging material cutting machines.
