Dual Digital PID Temperature Controller Kit REX-C100 with SSR-40DA + Heatsink + 2m Quality K Probe Free DHL 1232

50 Pieces
MOQ
Dual Digital PID Temperature Controller Kit REX-C100 with SSR-40DA + Heatsink + 2m Quality K Probe Free DHL 1232
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 1232
Basic Infomation
Model Number: 1232
Payment & Shipping Terms
Packaging Details: 15.0 * 10.0 * 10.0 ( cm )
Product Description

Features:

This is a bid for a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor.

it powered by 100V~240V AC


Model: REX-C100+K thermocouple +SSR 40A +2m K probe

PID contrpl

Specifications:

Display: Dual display for Celsius (C)

Range: -0-400C (Only when with the factory K type thermocouple)

Thermocouple: K,J,S,E,R,Wre3 ~ Wre25

Thermo Resistor: PT100, Cu50

Main Output: SSR:

PID cooling/heating control

1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC

7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm

Accuracy: 0.5%

Input:

Dimension: DIN: 1/16 (48mm x 48mm x 110mm)

Weight: about 200g

Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more

Relay control ready to connect

K type thermocouple: 0-400C, 2m cable .

Compact design:
DIN 1/8 great form-factor to be included/build-in to your product.

Input: TC(K, J, S, E) / RTD (Pt100, CU50) universal input, or 0-20mA signal.

Control output: SSR

Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.

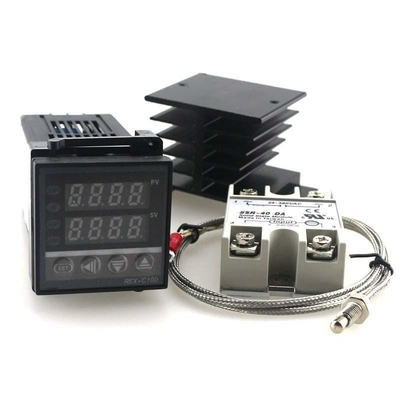

Package include:
1x REX-C100 PID Temperature Controller SSR output

1x K thermocouple ( 0-400C, 2m cable (6 feet).)

1X ssr 40a

1X heat sink

1x User Manual in English
