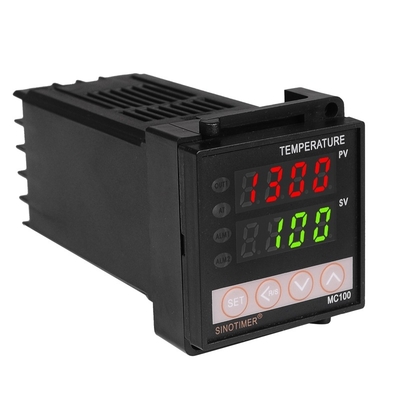

Power 12V Smart DC Digital PID Temperature Controller Regulator Thermostat Thermocouple K/J Sensor Input Relay Output MC100-12V

1 Piece
MOQ
Power 12V Smart DC Digital PID Temperature Controller Regulator Thermostat Thermocouple K/J Sensor Input Relay Output MC100-12V
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: MC100-12V
Product Name: Digital Temperature Controller
Power Supply: 12VDC 50/60Hz
Display: LCD Digital Display
Input: Universal Input
Output: Relay Or SSR
Measuring Range: 0~1300℃
Resolution: 1°C
Control Mode: PID, On-Off
Dimensions: 48*48*110mm
Certificate: CE RoHS EMC LVD
Basic Infomation
Certification: CE RoHS EMC LVD
Model Number: MC100-12V
Payment & Shipping Terms
Packaging Details: 1 inner recycled carton box
Product Description
Product Description

Product Features:


1. Dual display for both set temperature and process temperature

2. Size, 48*48mm

3. Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels.

4. Uses it in Heating Control as well as for Cooling control

5. Auto-tune function can find the best PID parameter automatically

6. Displays temperature in Celsius (degC)

7. Four digits LED display can go up to "9999

8. Uses it for Kiln,Furnace,Oven,Incubator temperature contro

9. It is used in various industries to control and monitor process temperatures

Model number
MC100-12V
Size
DIN 1/16, 48*48mm
Power supply
12VDC  50/60Hz
Control mode
PID
Input
TC: K, E, S, R, J, T, B, WRe3-WRe25.
RTD: Pt100, Cu50
Output
Relay or SSR
Display
Two lines, Four digits. °C.
Resolution
1°C
Accuracy
±0.5% or ±1 unit of full input range
Alarm
Upper-limit bias alarm
Power consumption
<2 Watt
