Features

Specifications

After-sales Service Provided: Return And Replacement

Warranty: 1 Year

Type: Other Home Appliance Parts

Application: Household

Power Source: Electric

Use: Temperature Control/Overheat Protection

Reset Type: Automatic

Base Material: Resist Heat Resin Base

Electrical Rating: 15A / 125VAC, 10A / 240VAC, 7.5A / 250VAC

Operating Temperature: -20Â°C~150Â°C (dependent On Wire Rating)

Tolerance: +/-5Â°C For Open Action(Optional +/-3 C Or Less)

Protection Class: IP00

Contact Material: Double Solid Silver

Dielectric Strength: AC 1500V For 1 Minute Or AC 1800V For 1 Second

Insulation Resistance: More Than 100MÎ© At DC 500V By Mega Ohm Tester

Basic Infomation

Payment & Shipping Terms

Product Description

Specification

item	value
After-sales Service Provided	Return and Replacement
Warranty	1 Year
Type	Freezer Parts
Application	Household
Power Source	Electric
Place of Origin	China
	Shandong

Product Paramenters

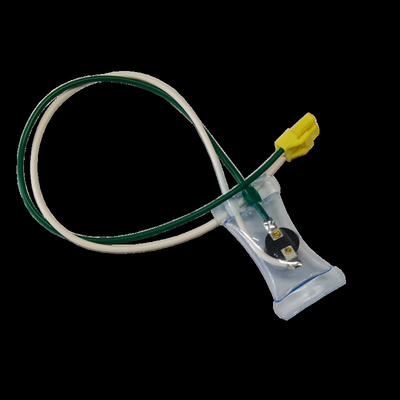

Porduct Name	Automatic Reset Snap Action Temperature Controller Switch for Refrigerator Bimetal Thermostat
Use	Temperature control/Overheat protection
Reset type	Automatic
Base material	Resist heat resin base
Electrical Rating	15A / 125VAC, 10A / 240VAC, 7.5A / 250VAC
Max. Operating Temperature	150°C
Min. Operating Temperature	-20°C
Tolerance	+/-5°C for open action(Optional +/-3 C or less)
Protection class	IP00
Contact material	Double Solid Silver
Dielectric Strength	AC 1500V for 1 minute or AC 1800V for 1 second
Insulation Resistance	More than 100MΩ at DC 500V by Mega Ohm tester
Resistance Between Terminals	Less than 50MΩ
Diameter of bimetal disc	Φ12.8mm(1/2″)
Approvals	UL/ TUV/ VDE/ CQC
Terminal type	Customized
Cover/Bracket	Customized

Features

- Automatic reset for convenience
- Compact, but capable of high currents
- Temperature control and overheating protection
- Easy mounting and quick response
- Optional mounting bracket available
- UL and CSA recognized

The Advantage of Automatic Reset Thermostat

- Lightweight but high durability;
- The temperature characteristic is fixed, no adjustment is needed, and -the fixed value is optional;
- High precision of action temperature and accurate temperature control;
- The contacts have good repeatability and reliable snap action;
- The contacts are on and off without arcing, and the service life is long;
- Little interference to radio and audio-visual appliances.

Applications

- White goods
- Electric heaters
- Automotive seat heaters
- Rice Cooker
- Dish Dryer
- Boiler
- Fire Apparatus
- Water Heaters
- Oven
- Infrared Heater
- Dehumidifier
- Coffee Pot
- Water purifiers
- Fan Heater
- Bidet
- Microwave Range
- Other Small Appliances

Packing & Delivery

Packaging Details Standard Export Packing

Port Qingdao, Shanghai
Lead Time 20-30Days

Company Profile

Weihai Sunfull Hanbecthistem Intelligent Thermo Control Co., Ltd. is a joint venture company established by Hanbecthistem Co., Ltd., which is the leading company in temperature controller field from Korea and Weihai Sunfull Electronics Group Co., Ltd. We are specialized in development, design and manufacture of thermostats and electronic sensors which are applied to cars, refrigerators, air-conditioners, washing machines, micro-wave ovens, electric cookers, coffee makers and other consumer appliances or HVAC appliances. Current annual manufacturing capacity is over 20,000,000pcs. We carry out the strict quality management system, and win the global customers' satisfaction by the stable quality and reliable performance products at the most competitive price. Our products are exported to Europe, America, Australia and Korea etc. We have built long-term cooperation with Electrolux, LG, Samsung, etc. With sincere services, we are expecting to link your hands to create a better tomorrow.

Certifications

FAQ

1. who are we?
We are based in Shandong, China, start from 2003,sell to Domestic Market(50.00%),South Asia(12.00%),Southeast Asia(9.00%),Western Europe(9.00%),North America(9.00%),Oceania(9.00%),Eastern Asia(2.00%). There are total about 1-4 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Defrost Thermostat,Bimetal Thermostat,Thermal Protector,Wire harness,NTC Temperature Sensor.

And we can also provide customize service according to your demand.

4. why should you buy from us not from other suppliers?
We are a joint venture company from Korea and China, Thermostats and Electronic Sensors are our main products. With the stable quality and reliable performance, our products won the global customers' satisfaction, such as Electrolux, LG, Samsung, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Russian,Korean,Hindi
