Home /Products/Bimetal Thermostat Switch/CQC KSD301/302 Ceramic Jump Thermostat 16A 250V 40~260C Sudden Normally Closed Normally Closed Thermal Switch

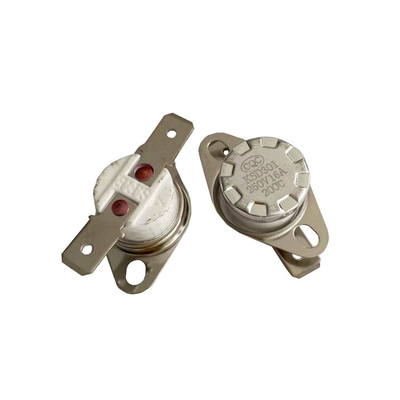

CQC KSD301/302 Ceramic Jump Thermostat 16A 250V 40~260C Sudden Normally Closed Normally Closed Thermal Switch

50 Pieces
MOQ
$0.24(50 - 999 Pieces) $0.20(>=1000 Pieces)
Price
CQC KSD301/302 Ceramic Jump Thermostat 16A 250V 40~260C Sudden Normally Closed Normally Closed Thermal Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: KSD301
Warranty: 3months-1year
Type: Switch, KSD301/302
Certification: CCC TUV
Customized: Yes
Whether The Smart: Yes
Product Name: Thermal Switch
Body Material: Ceramic
Switch Type: Normally Closed / Normally Open
Working Voltage: 250V
Overload Current: 16A
Life: 50000 (times)
Basic Infomation
Certification: CCC TUV
Model Number: KSD301
Payment & Shipping Terms
Product Description
Products Description
Product Name
thermal switch
Model
KSD301
Body material
ceramic
Switch type
 normally closed / normally open
Electrical parameters
AC250V 50-60Hz 10A/15A/20A/25A
Operating temperature range
40~260℃
Life
≥100000 (times)
Action temperature error
±3℃/5℃
Reset temperature error
±15℃
Contact resistance
≤50mΩ
Insulation resistance
≥100mΩ
CODE
OPEN TEMP
RESET TEMP
CODE
OPEN TEMP
RESET TEMP
40
40±5°C
≥30°C
95
95±5°C
80±5°C
45
45±5°C
≥33°C
100
100±5°C
82±5°C
50
50±5°C
≥35°C
105
105±5°C
85±5°C
55
55±5°C
42±6°C
110
110±5°C
90±5°C
60
60±5°C
48±5°C
115
115±5°C
95±5°C
65
65±5°C
48±5°C
120
120±5°C
100±5°C
70
70±5°C
55±5°C
125
125±5°C
102±5°C
75
75±5°C
60±5°C
130
130±5°C
105±5°C
80
80±5°C
65±5°C
135
135±5°C
108±5°C
85
85±5°C
70±5°C
140
140±5°C
110±5°C
90
90±5°C
75±5°C
145
145±5°C
110±5°C

product description.

KSD301 series products are thermostats that use bimetallic pieces as temperature sensing elements. When the appliance is working normally, the bimetals are in a free state and the contacts are in a closed state. When the temperature reaches the operating temperature, the bimetals will generate internal stress when heated Act quickly to open the contacts and cut off the circuit, thus controlling the temperature. When the appliance cools down to the reset temperature, the contacts close automatically and resume normal operation.
