Coffee Maker / Potable Frying Machine AC Thermostat 220 Circuit Breakers Pan Temperature Control Safety Switch Electric Household Appliances / Toaster / Microwave Oven / Heater

1000 pieces
MOQ
Coffee Maker / Potable Frying Machine AC Thermostat 220 Circuit Breakers Pan Temperature Control Safety Switch Electric Household Appliances / Toaster / Microwave Oven / Heater
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: KSD301
Cover: Fixed/ Moveable/ Screw
Case: Bakelite/ceramic
Reset Differential: 10°C - 50°C
Amperage: 5A/10A/16A
Contact Capacity: 100,000 Times
Product Type: Thermal Switch Thermostat
Usage: Coffee Maker/Drinking Machine/toaster/Microwave Oven/Heating
Switch Type: Normally Closed/Open
Safety Approval Certificate: UL.TUV.DVE.CB.CQC.CQM.SGS,ROHS ,REACH

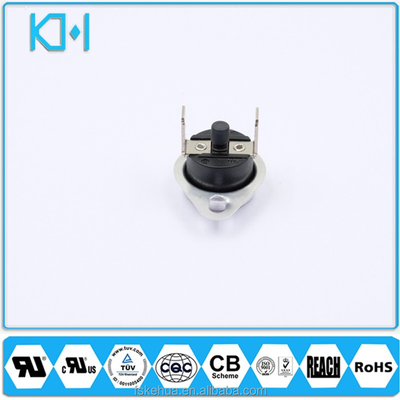

Product Name: Snap-action Thermostat
Basic Infomation
Certification: UL.TUV.DVE.CB.CQC.CQM.SGS,ROHS ,REACH
Model Number: KSD301
Payment & Shipping Terms
Packaging Details: 100pcs per inner box, 20 box(2000pcs) per carton, the carton size is 45CM(L)*23CM(W)*26CM(H)
Supply Ability: 300000 Piece/Pieces per Month
Product Description
Product Description

AC Thermostat 220 Circuit Breakers Electric Frying Pan Temperature Control Safety Switch Household Appliances

Description

KSD301 series snap-action use in a great variety of small home appliances, such as portable icebox, to provide temperature control or temperature protection. This can be divided into 7 sub-series: KSD301,KSD301R,KSD301G,KSD301GR,KSD301-SG,KSD301R-M,KSD301,GR-M

SAFETY CERRIFICATE

TypeMax.Operating valuesRated vlotageRated currentLife
KSD301 SERIES185℃250VAC5A,10A,16A100,000 cycles
KSD301R SERIES185℃250VAC5A,10A,16A10,000 cycles
KSD301G SERIES270℃250VAC5A,10A,16A100,000 cycles
KSD301GR SERIES270℃250VAC5A,10A,16A10,000 cycles
KSD301R-M SERIES185℃250VAC5A,10A,16A10,000 cycles
KSD301GR-M SERIES270℃250VAC5A,10A,16A10,000 cycles
UL CERRIFICATE
TypeMax.Operating valuesRated vlotageRated currentLife
KSD301 SERIES150℃125VAC5A,10A,16A100,000 cycles
KSD301-R SERIES150℃125VAC5A,10A,16A10,000 cycles
KSD301-G SERIES240℃125VAC5A,10A,16A100,000 cycles
KSD301-GR SERIES240℃125VAC5A,10A,16A10,000 cycles
KSD301-SG SERIES160℃125VAC5A,10A,16A100,000 cycles
Dimension of bimetal thermostat
Terminals and covers(COVER CODE AND THER SKETCH)
THERMINAL
FAQ

*TERMINALS AND COVERS OF BIMETAL THERMOSTAT CAN BE CUSTOMIZED UNDER YOUR REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT BIMETAL THERMOSTATS.
