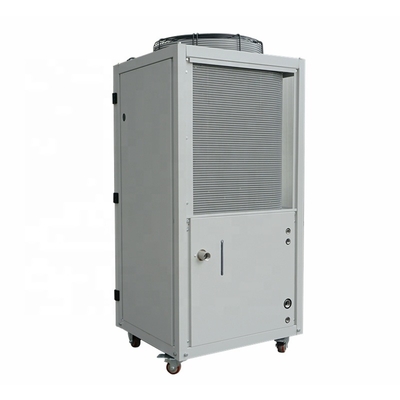

Industrial Cooling Solutions 3HP Efficiency Micro Channel Portable Air Cooled Chiller For Plastic Processing

5.0 Sets
MOQ
$1,200.00(5 - 14 Sets) $1,100.00(15 - 19 Sets) $1,050.00(20 - 29 Sets) $1,000.00(>=30 Sets)
Price
Industrial Cooling Solutions 3HP Efficiency Micro Channel Portable Air Cooled Chiller For Plastic Processing
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Food & Beverage Factory
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Compressor
Condition: New
Type: Air-cooled
Voltage: 220V
Dimension(L*W*H): 580 X 700 X 1320mm
Weight: 122 KG
Warranty: 1 Year
Power: 2210
Working Temperature Range: 0~35
Key Selling Points: Competitive Price
Product Name: Micro Channel Air Cooled Chiller
Cooling Capacity: 7.5kw
Compressor: Copeland Scroll Compressor
Condenser: Micro Channel
Evaporator: Stainless Steel Tank + Copper Coil
Temperature Range: 5~35C
Refrigerant: R-410a
Application: Industrial Cooling Solutions
After Warranty Service: Video Technical Support
Certification: Ce
Basic Infomation
Certification: ce
Payment & Shipping Terms
Supply Ability: 200 Set/Sets per Month
Product Description
Product Description
Microchannel  Air Cooled Chiller:

What is a micro channel coil?
The Micro channel coil design is based on technology from the automotive industry. It is constructed of parallel flow aluminum
tubes that are mechanically brazed to enhanced aluminum fins, resulting in better heat transfer and a smaller, lighter, corrosion
resistant coil.
How does Micro channel compare to other types of coils?
Other manufacturers use copper tubes with aluminum fins, or spiny fin coils which are aluminum tubes with spiny fins tightly
wrapped around them. Both of these designs result in a larger coil that is MUCH easier to damage and both require twice as much
refrigerant. The aluminum fins in both of the above designs are delicate and very hard to clean without causing damage.
Right side view
Back side view
Inside view
What are the advantages of using Micro channel coils?
Size and Efficiency - Micro channel coils are 40% smaller, 40% more efficient, and use 50% less refrigerant than standard tube and fin coils. Durability and Resistance to Corrosion – Micro channel coils are much sturdier and harder to damage. These coils last up to 7 times longer in a coastal environment.
Easier to clean - Micro channel coils are easy to clean!
You can actually wash the Micro channel coils with a high pressure sprayer without bending the fins – with a tube and fin coil that would bend all the fins flat! Now you have an opportunity to add condenser coil cleaning to your maintenance contracts; you can easily clean a coil to like-new condition in less than 10 minutes with a pressure spray; there is no other coil that is this easy to clean.
Enhanced coil protection - Standard tube and fin coils are easily damaged in transit and handling.
The coils are far more resistant to damage, plus these units also have a steel coil guard and a Diamond Mesh guard to keep coils thoroughly protected and great looking for years.
Detailed Images
Copeland Scroll Compressor
Circulating Water Pump

Low Noise Condenser Fan
Microchannel Coil Condenser
Electrical Cabient
Stainless Steel Tank + Copper Coil
Specification
Mode
QLB8MC/LG
Cooling Capacity ( kw )
7.5KW
Cooling Type
Air Cooled
COP
3.08
Power Supply
220V/50HZ
Max. current
4.1A
Compressor
Mode
Full-hermetic Scroll
1set
Input Power
2.21KW
Loading
0~100％
Refrigerant
R410A
Wiring（mm²）
6
Condenser
Mode
Microchannel Coil
Condensing Fan Motor ( kw )
0.24kw
Ambient Temp.
Dry Bulb 35℃ / Wet bulb 28℃
Evaporator
Mode
90 liters Tank + Coil
Chilled water in ( ℃ )
12℃
Chilled water out ( ℃ )
7℃
Water flow rate ( M3/h )
0.98M3/h
Throttle Methods
Thermal Expansion Valve
Safety protection
High or low pressure protection, over-load protection, anti-phase protection, compressor over-heat protection, extra high pressure
fusible plug protection, oil pressure protection, etc.
Piping connection
Chilled water in &out (DN)
DN25
Dimension
L x W x H
580mm x 700mm x 1320mm
Weight (kg)
122KGS
Solutions
Plastic injection cooling, Die cooling, mould cooling, PVC PPR PP Extruding cooling purpose.
Food & beverage processing, Metal surface finishing electroplating etc.
Company Profile

About US

Zhejiang Kingfit Environmental Co., Ltd. is a national high-tech enterprise that has been committed to the one-stop solution for modern industrial and agricultural intelligent environmental systems for many years. Kingfit is located in Shuige Industrial Zone, Lishui City, Zhejiang Province, and covers an area of ​​80000m2. It has standard cooling equipment, water cooling and cold water test equipment, test benches, enthalpy difference laboratories, and other advanced testing equipment. The scale of production can each an annual output of 20,000 sets of industrial air conditioners.
Since its establishment, Kingfit has actively promoted technological innovation. Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Kingfit has established a comprehensive quality management system compatible with ISO9001 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, pressure vessel production license, and "6S" site management and CE approved. The theory of improvement was integrated and an integrated continuous improvement model was established, which greatly improved the operational efficiency and effectiveness of corporate management.
Kingfit understands the needs of customers, customizes the products for customers, and customizes the requirements. At present, the products are exported to more than 60 countries and regions all over the world and have received unanimous recognition and praise from customers.

Modern Production Lines:

Advanced Testing Center: All products are 100% tested before delivery!
Certifications
Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
ISO9001, CE Certificate.
Exhibition
Packing & Delivery
Wooden package with Air bubble film, Wrapping Film, Big part will be nude packing in container, steel wire fixed so that it's stable for shipping.
Why Choose US?

Experienced In Chiller
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.

All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.

Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.

OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.


Full Solutions Provider
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure all chiller making processes are under controlled.

No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.

12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely
without worries about the after-sales service.
