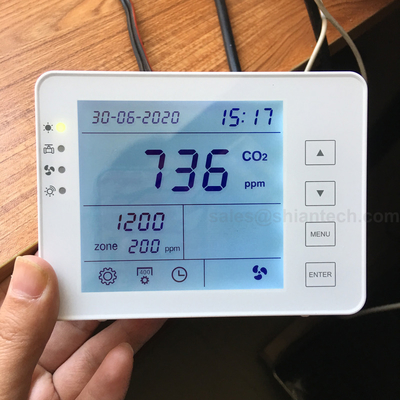

SA1600W Office School indoor air quality controller for ventilation system relay output indoor co2 controller
Brief introduction: CO2 air quality monitor
It's an air quality monitor and controller that CO2 air quality monitor
1. shows real-time readings of CO2, temperature and humidity
2. controls start-up and shutdown of CO2 regulator to supply the plants with just needed dose of carbon dioxide
3. controls start-up and shutdown of ventilation fan when CO2 concentration is higher or lower than the setpoint.
Application:
Grow Room, Greenhouse, Glass House, Plants Factory, Mushroom / Paprika / Strawberry / Tomato Farming Cold Storage
Features:
1. Super large LCD to monitor CO2 concentration, time&date simultaneously
2. Three-level indoor quality indicating system Good, Normal, Poor CO2 air quality monitor
3. High-end touch buttons CO2 air quality monitor CO2 air quality monitor
4. NDIR sensor for CO2 monitoring CO2 air quality monitor
5. OEM and ODM are welcomed
CO
|
Measurement |
Specifications |
|
Operating Temperature |
32°F to 122°F (0°C to 50°C) |
|
Storage Temperature |
-4°F to 140°F (-20°C to 60°C) |
|
Operating & Storage RH |
0-95%, non-condensing |
|
CO2 Measurement |
|
|
Measurement Range |
0-5000ppm |
|
Display Resolution |
1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000) |
|
Accuracy at 0~3000ppm |
±50ppm or ±5% of reading, whichever is greater |
|
Accuracy over 3000ppm |
±7% of the reading |
|
Repeatability |
20ppm at 400ppm (standard dev. of 10 readings in 1 minute) |
|
Temp Dependence |
±0.2% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C |
|
Response Time |
<2min for 63% of step change or <4.6min for 90% step change CO2 air quality monitor |
|
Warm-up Time |
<20 sec |
|
Temp Measurement |
|
|
Operating Temperature |
32°F to 122°F (0°C to 50°C) |
|
Display Resolution |
0.1°F (0.1°C) |
|
Response Time |
<20min(63%) |
|
RH Measurement |
|
|
Range |
5-95% |
|
Accuracy |
±5% |
|
Resolution |
1% on Main Reading, 0.1% on Max Min Reading |
|
|
|
|
Power Requirements |
160mA Peak, 40mA average at 5.0V |
|
Dimension |
120*90*33.5mm (4.7*3.5*1.3 inch) |
|
Weight |
103g ( 3.6oz) Device only, AC Adapter not included |
SA1200P and SA1300P
Air quality monitor for real-time readings of Carbon Dioxide, Temperature, Humidity
1. Customer's logo and brand name can be printed on enclosure, enclosure color can be changed according to customer's preference
2. Software can be changed according to customer's preference
3. Functions can be modified according to customer's preference
4. Develop brand new portable gas detectors
One-stop service for gas detection products
1. Industrial design, structure design, appearance design for gas detection products
2. Programme design and development, software development
3. Fast prototype and mold development
4. Mass production, international shipment
5. OEM or relabel for present ready-made products
6. Provide maintenance service for any brand of gas detectors
Beijing Sh'an Technology Instrument Co., Ltd is a manufacturer in Beijing, China. It focuses on gas detection products from designing, engineering, programming, molding to assembly, testing, calibration and maintenance.
Shiantech is ISO9001 approved and SGS audited and we have Ex certificate, safety certificate and CE certificate for our portable gas detection products.
ODM and OEM are always welcomed and tailored products and solutions are the essential and ultimate goal we are ready to deliver to our esteemed customers.
